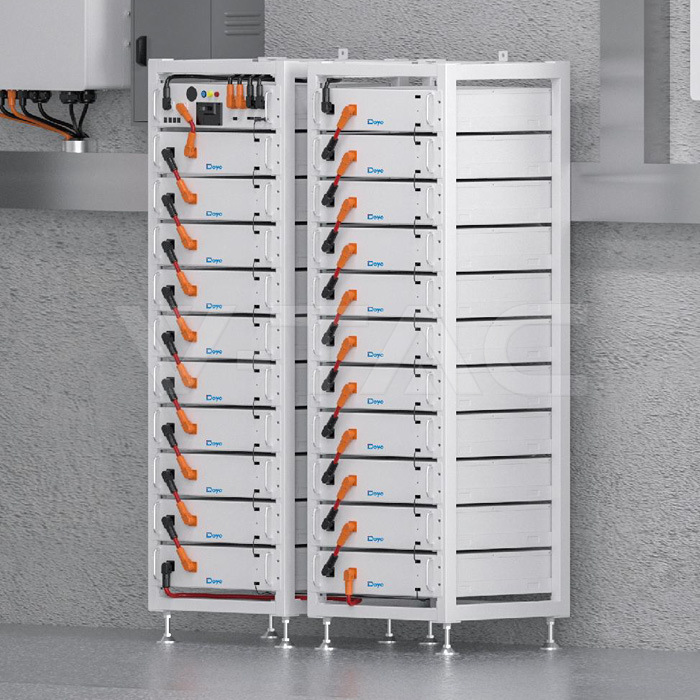

161.28kWh HV LiFePO4 Battery System Deye IP20 BOS-A

SKU: 12657 | VT: BOS-A
12657-2
12635
12636
12639

The PV Set includes:

  • 21 pcs – 7.68kWh BOS-A-PACK Battery SKU:12635;

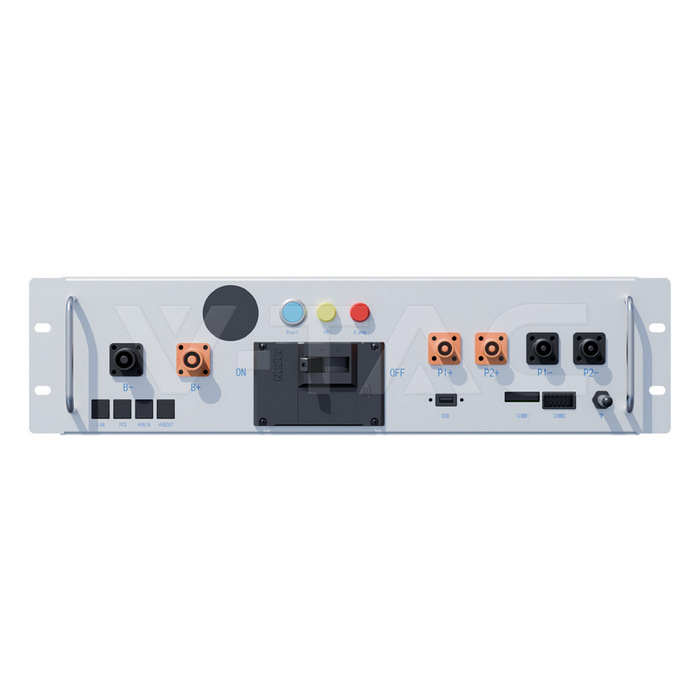

  • 1 pcs – Battery Cluster Control Box SKU:12636;

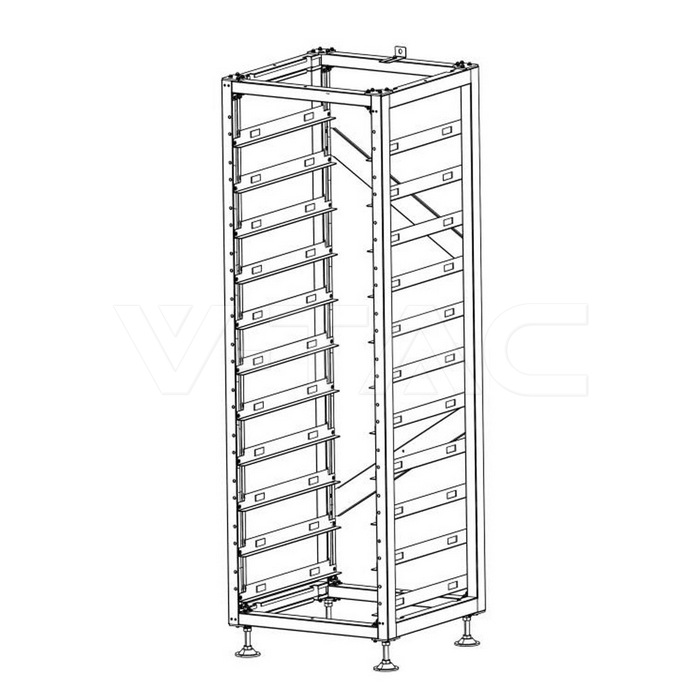

  • 2 pcs – Battery Rack SKU:12639;
Downloads
Manual
SGS
Certificate of Conformity
IEC 62619
Technical Specifications
|
CEI 0-21
|
Expansion and Use Statement
Warranty Conditions
Declaration of Conformity
Specifications
General Information
Electrical Data
Wattage
161.28kWh (7.68kWh x 21)
Current
Nominal Charge/Discharge Current: 160A
Voltage
System Nominal Voltage: 806.4V
Body Details
Mount
On a Rack
Capabilities
Battery Capacity
Module: 200Ah (LiFePO4)
Working conditions
  • Operating Temperature(Charge): 0 +55°C;
  • Operating Temperature(Discharge): -20 +55°C;
IP Rating
IP20
Cells Chemistry
LiFePO4
Dimensions
Size
(610 x 610 x 1900 mm) x 2
Product Data
Order code
12657
Product code
BOS-A
Item Weight
1586 kg
Additional
Release Date
15.08.25
Warranty
10 years
Additional information
  • Model: BOS-A160;
  • System energy (kWh): 161.28;
  • Rated DC Power (kW): 129.02;
  • Discharge Depth: 90%;
  • Composition: BOS-A-Pack 7.68 * 21 + BOS-A-PDU-2 * 1;
Brand
Deye
