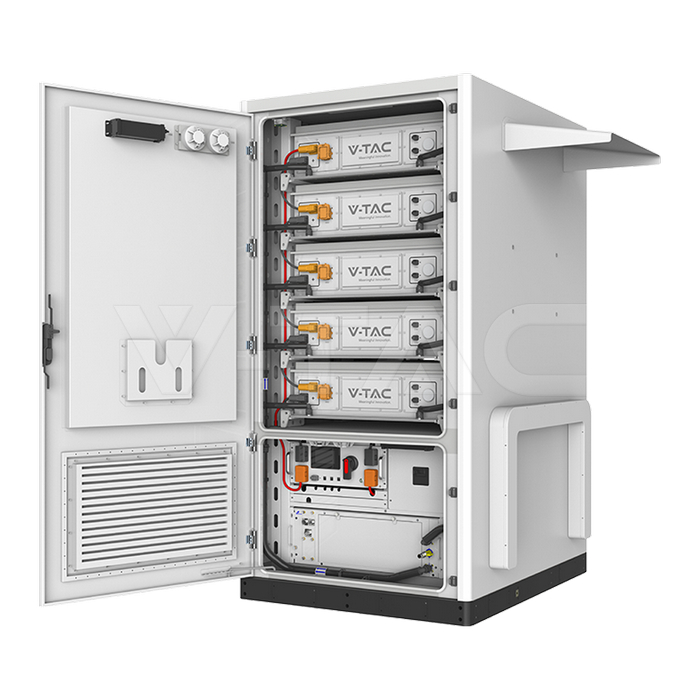

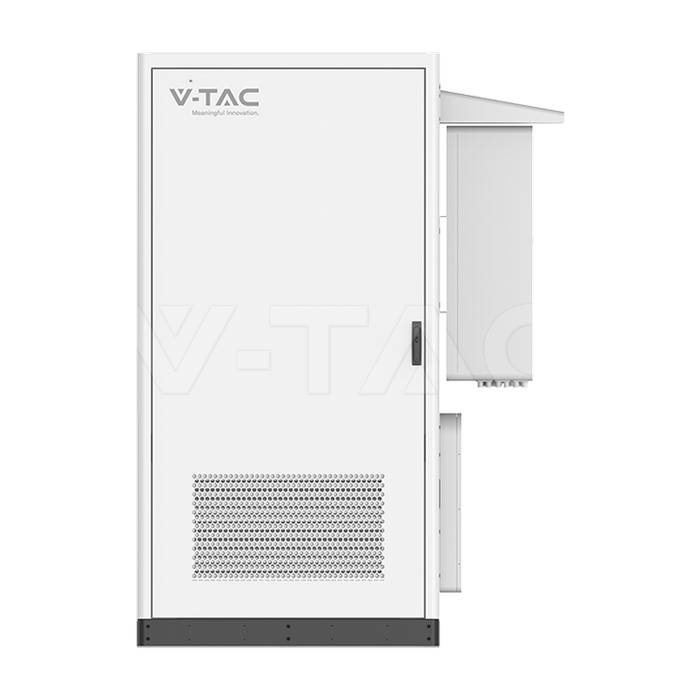

261kWh HV LiFePO4 Energy Storage System Liquid Cooling Oliter IP65

SKU: 12676 | VT: OHL-261
12676n-2
12676n-3
12676n-4
12676n-5
12676n-6
12676n-7
12676n-8

The PV Set includes:

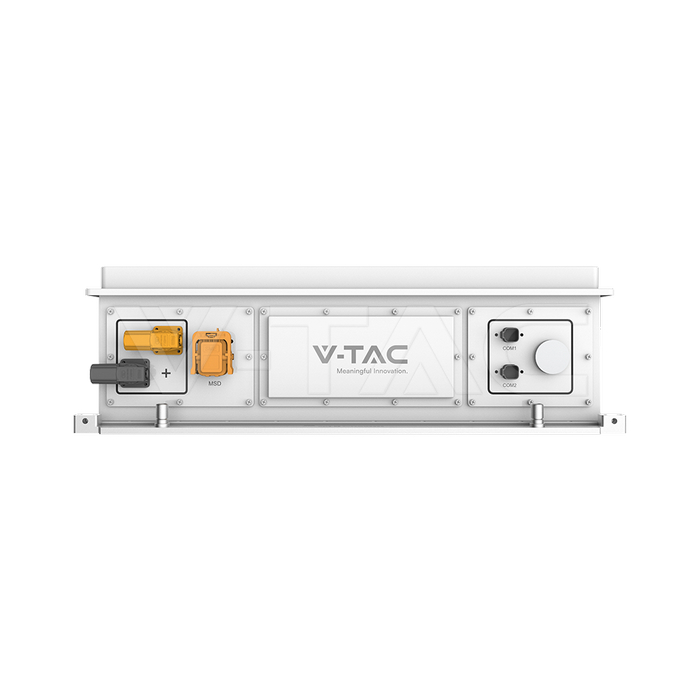

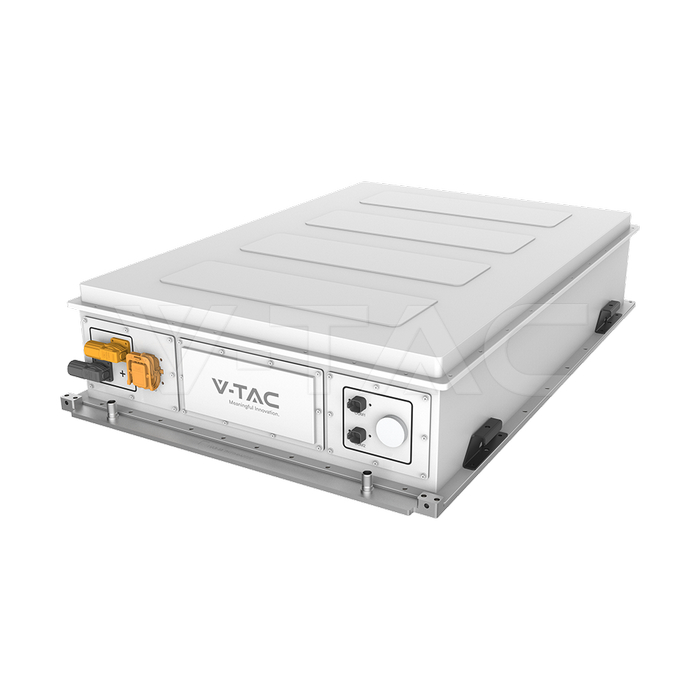

  • 5 pcs - 52.249kWh LiFePO4 Battery;

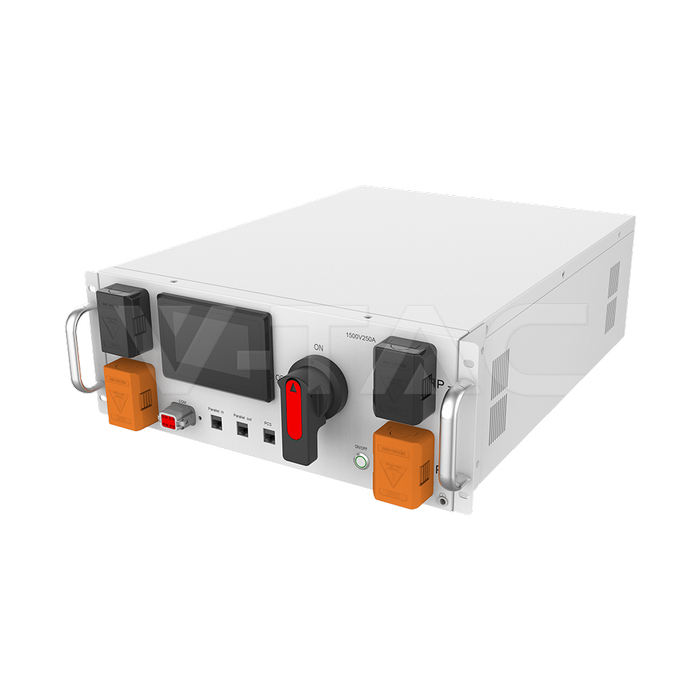

  • 1 pc - High Voltage Battery Cluster Control Box;
  • 1 pc - Rack for Battery Set;
Downloads
IEC 62619
Technical Specifications
Manual
PPWR Declaration of Conformity
Warranty Conditions
Maintenance Guidelines
Specifications
General Information
Electrical Data
Wattage
261kWh (52.249 kWh x 5)
Current
  • Recommend Charge/Discharge Current: 100A;
  • Max. Charge/Discharge Current: 157A;
Voltage
  • System Nominal Voltage:832V;
  • System Operating Voltage: 728-949V;
Body Details
Mount
On a Rack
Capabilities
IP Rating
IP65
Battery Capacity
Module: 314Ah (LiFePO4)
Working conditions
-20 ~ 55°C
Cells Chemistry
LiFePO4
Dimensions
Size
  • 1100 x 1400 x 2105 mm (Inverter not included);

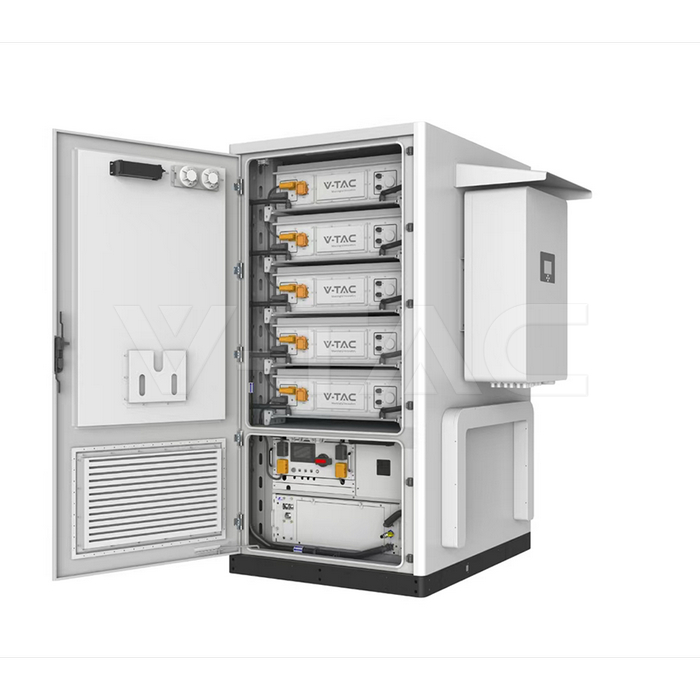

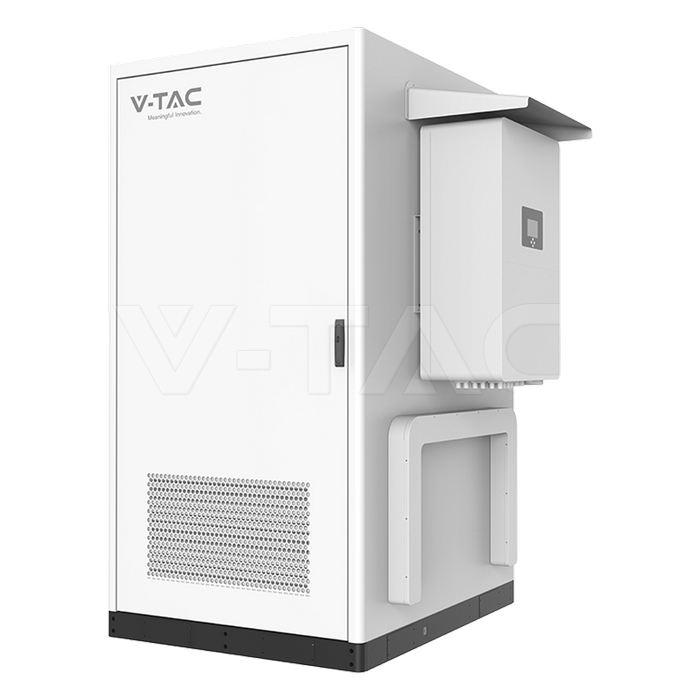

  • 1600 x 1400 x 2105 mm (Inverter included);
Product Data
Order code
12676
Product code
OHL-261
Item Weight
~2700 kg
Additional
Release Date
21.01.26
Brand
V-TAC
Warranty
10 years
