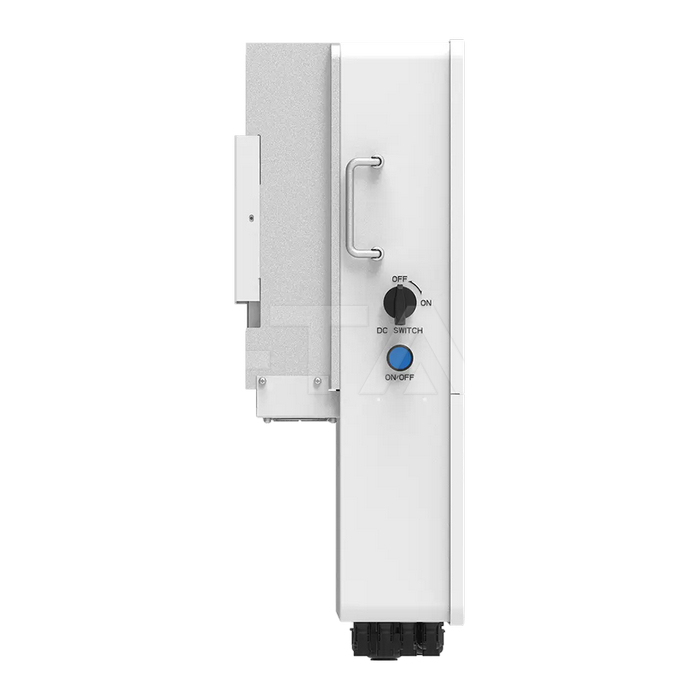

25kW Hybrid Solar Inverter Three Phase High Voltage

SKU: 12644 | VT: SUN-25K-SG01HP3-EU-AM2
12644-2

Downloads
Manual
CEI 0-21
|
Technical Specifications
Specifications
General Information
Electrical Data
Wattage
  • Rated AC Input/Output Active Power: 25000W;
  • Max. PV Access Power: 50000W;
  • Max PV Input Power: 40000W;
Current
  • Max Input Short-Circuit Current: 39+39A;
  • Max Operating PV Input Current: 26+26A
  • Rated AC Input/Output Current: 37.9/36.3A;
  • Max AC Input/Output Current: 41.7/39.9A;
Phase
Three Phase
Voltage
  • Rated PV DC Input Voltage: 700V;
  • MPPT Range: 150-850;
  • Max PV Input Voltage: 1000V;
  • Start-up Voltage: 180V;
Power Factor
0.8 leading to 0.8 lagging
Capabilities
Working conditions
-40°C to +60°C, >45°C Derating
IP Rating
IP65
Dimensions
Size
408 x 638 x 237 mm
Product Data
Order code
12644
Product code
SUN-25K-SG01HP3-EU-AM2
Items per pack
1
Item Weight
30.5 kg
Additional
Release Date
20.08.25
Warranty
10 years
Brand
Deye
