3.6kW Hybrid Solar Inverter Single Phase 230VAC

SKU: 12344 | VT: SUN-3.6K-SG05LP1-EU-AM2-P

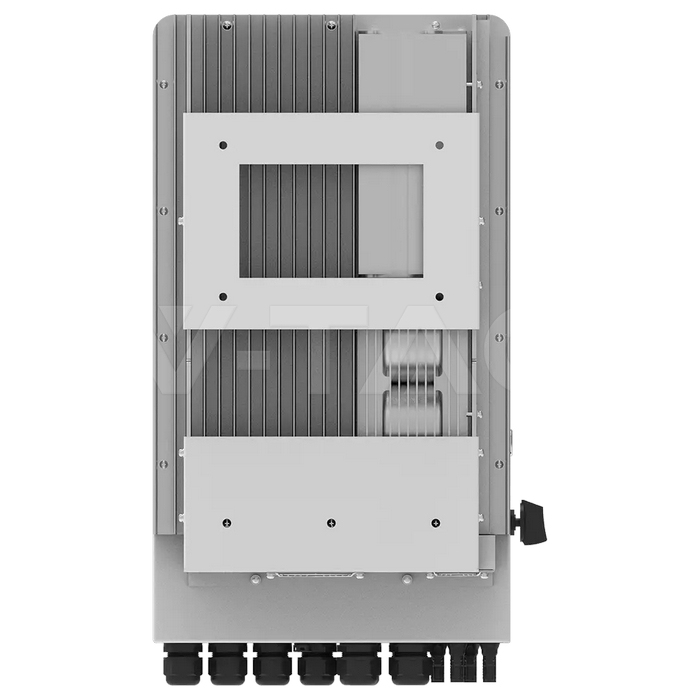

12344-2

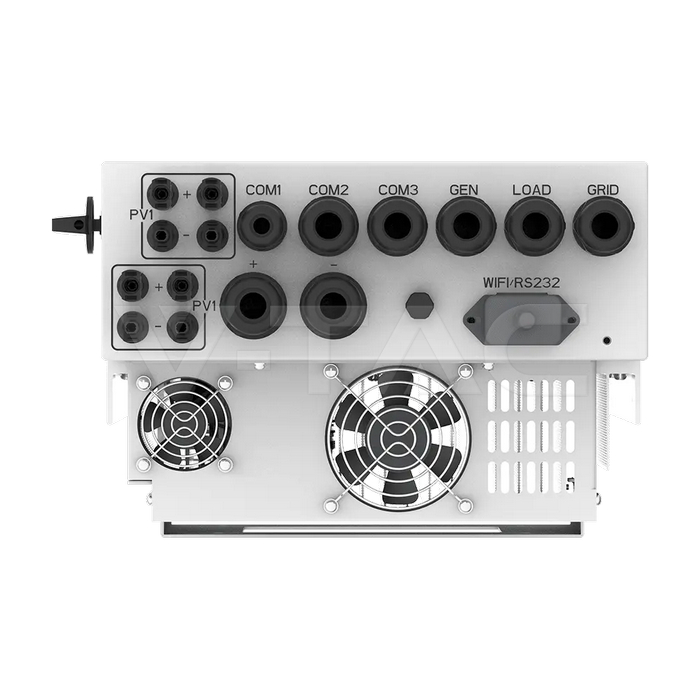

12344-3

Downloads
Declaration of Conformity
EN 50549
CE
VDE Certificate
|
Certificate of Conformity
Technical Specifications
EMC License
CEI 0-21
|||
Specifications
General Information
Electrical Data
Wattage
  • Rated AC Input/Output Active Power: 3600W;
  • Max. PV Access Power: 7200W;
  • Max PV Input Power: 5760W;
Current
  • Max Input Short-Circuit Current: 27+27A;
  • Max Operating PV Input Current: 18+18A
  • Rated AC Input/Output Current: 16.4/15.7A;
  • Max AC Input/Output Current: 18/17.2A;
Phase
Single Phase
Voltage
  • Rated PV Input Voltage: 370V;
  • MPPT Range: 150-425;
  • Max PV Input Voltage: 500V;
  • Start-up Voltage: 125V;
Power Factor
0.8 leading to 0.8 lagging
Capabilities
Working conditions
-40°C to +60°C, >45°C Derating
IP Rating
IP65
Dimensions
Size
330 x 580 x 232 mm
Product Data
Order code
12344
Product code
SUN-SG05LP1-EU-AM2-P
Items per pack
1
Item Weight
24.9 kg
Additional
Release Date
25.07.25
Warranty
10 years
Brand
Deye
