3.6kW On/Off Grid Hybrid Solar Inverter Single Phase 230VAC

SKU: 11725 | VT: SUN-3.6K-SG03LP1-EU

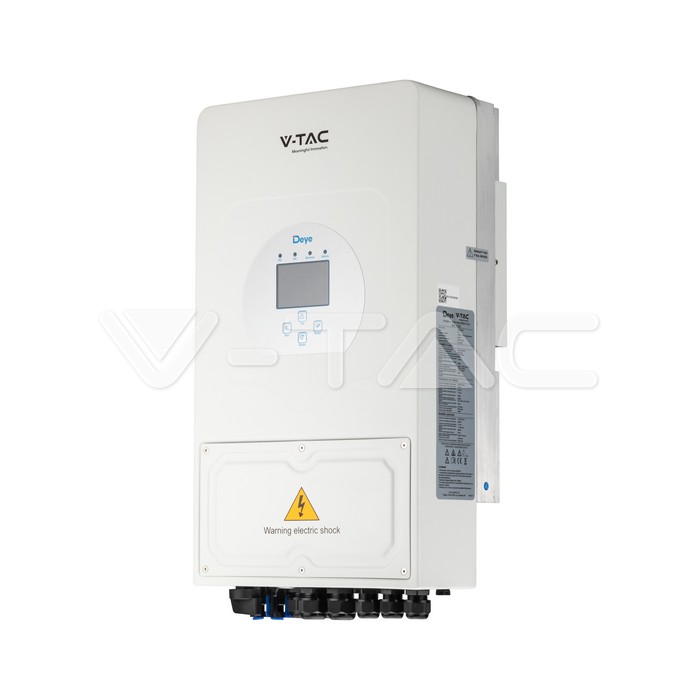

11725-2
How to Install V-TAC Single Phase Hybrid Inverters V-TAC

Downloads
Manual
CEI 0-21
||||||
EMC License
LVD License
|
Technical Specifications
Warranty Conditions
|
Declaration of Conformity
Specifications
General Information
Electrical Data
Wattage
  • Max. Input Power: 4680W;
  • Rated AC Output and UPS Power: 3600W;
  • Max. AC Output Power: 3960W;
Current
  • PV Input Current: 13A+13A ;
  • AC Output Rated Current: 16.4/15.7A;
  • Max. AC Current: 18/17.2A;
  • Max. Continuous AC Passthrough: 35A;
Voltage
  • PV Input Voltage: 370V (125V~500V);
  • MPPT Range: 150~425V;
  • Full Load DC Voltage Range: 300~425V;
  • Start-up Voltage: 125V;
Frequency
Output Frequency 50/60Hz
Power Factor
0.8 leading to 0.8 lagging
Phase
Single Phase
Capabilities
Working conditions
-40~60℃ BJ2, >45℃ Derating
IP Rating
IP65
Dimensions
Size
330 × 580 × 232 mm
Product Data
Order code
11725
Product code
SUN-3.6K-SG03LP1-EU
Item Weight
20.5 kg
Item Volume
0.14256
Items per box
1
Additional
Release Date
19.04.2023
Warranty
10 years
Brand
Deye
