80kW Hybrid Solar Inverter Three Phase High Voltage

SKU: 12322 | VT: SUN-80K-SG02HP3-EU-EM6

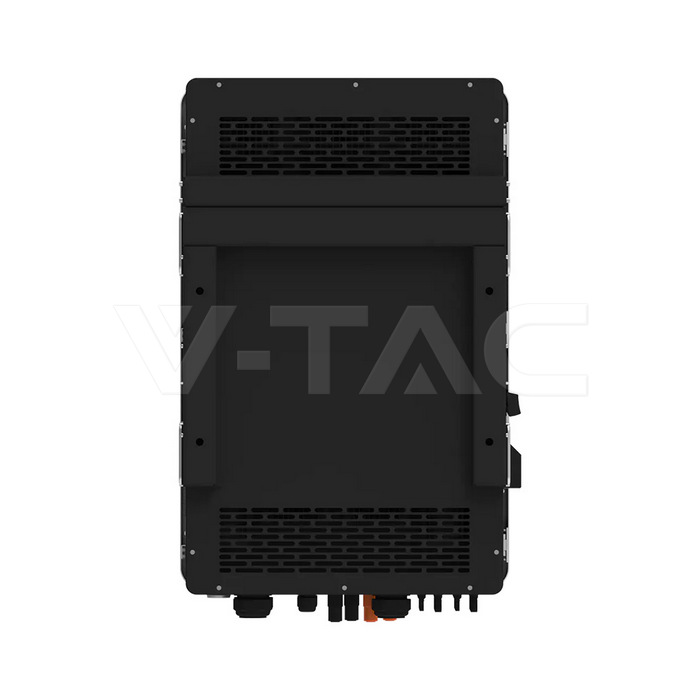

12322-3

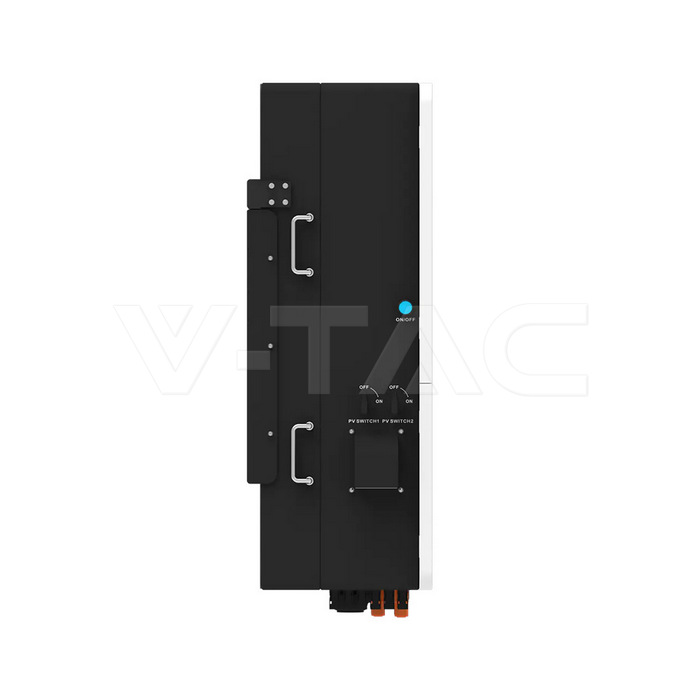

12322-4

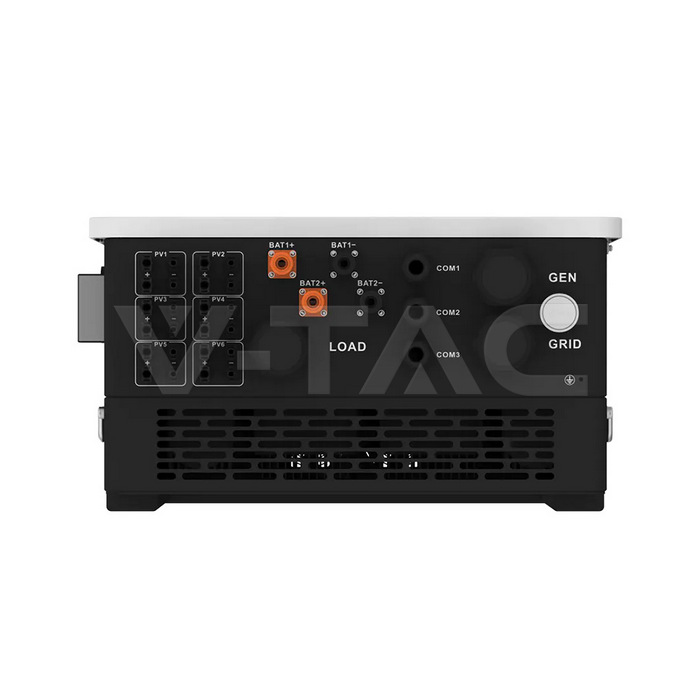

12322-5

Downloads
Technical Specifications
Certificate of Conformity
IEC 61727 - IEC 62116
IEC 60068
EN 62109
|
EMC License
Manual
CEI 0-21
||
Specifications
General Information
Electrical Data
Wattage
  • Max. PV Access Power: 160000W;
  • Max. PV Input Power: 128000W;
  • Rated AC Input/Output Active Power: 80000W;
Current
  • Max. Operating PV Input Current: 36+36+36+36+36+36A;
  • Max. Input Short-Circuit Current: 54+54+54+54+54+54A;
  • Rated AC Input/Output Current: 121.3/115.9A;
  • Max. AC Input/Output Current: 133.4/127.6A;
  • Max. Continuous AC Passthrough: 200A;
Voltage
  • Max. PV Input Voltage: 1000V;
  • Start-up Voltage: 180V;
  • MPPT Voltage Range: 150-850V ;
  • Rated PV Input Voltage: 650V ;
Frequency
50/60Hz
Power Factor
0.8 leading to 0.8 lagging
Phase
Three Phase
Capabilities
Working conditions
`-40~60°C, >45°C derating
IP Rating
IP65
Product Data
Order code
12322
Product code
SUN-80K-SG02HP3-EU-EM6
Additional
Release Date
27.05.25
Additional information
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Warranty
10 years
Brand
Deye
